You turn the key or press the start button and hear something that instantly ruins the mood: click. Maybe the engine turns over, but much slower than usual. Or perhaps the car starts normally in the morning, then acts completely dead after work.
The battery is an obvious suspect. But is it actually bad?
Learning how to test car battery condition can save you from replacing a perfectly usable battery or blaming the alternator for something it did not cause. You do not need a full repair shop in your garage, either. A basic digital multimeter can tell you quite a lot.
There is one catch. Battery voltage alone does not tell the whole story.
A weak battery can sometimes show a respectable voltage while sitting in the driveway, then collapse as soon as the starter asks for serious current. On the other hand, a healthy battery can test low simply because the car has been sitting, a light was left on, or repeated short trips have not given it enough time to recharge.
So the smart approach is to look at several clues together: resting voltage, behavior during starting, charging voltage, battery age, visible condition, and how the car has been behaving lately.
Here is how that works.
First, Know What You Are Testing
Most gasoline-powered passenger vehicles in the United States still use a 12-volt starting battery. Many hybrids and electric vehicles also have a separate 12-volt battery for accessories and control systems, even though the vehicle has a much larger high-voltage traction battery.
This article is about testing the conventional 12-volt battery.
Do not open, probe, disconnect, or attempt to test a high-voltage EV or hybrid traction battery yourself. Those systems require specific procedures, training, and protective equipment.
For a standard 12-volt battery, the basic job is much more approachable.
What You Need Before You Start
You do not need much. In fact, most of the useful checks can be done in a few minutes.
- A digital multimeter that can measure DC voltage
- Safety glasses
- Clean access to the battery terminals or designated jump points
- The vehicle owner’s manual if the battery is hidden or remotely located
- A helper if you want to watch voltage while someone starts the engine
A dedicated battery load tester can provide more information, but it is not essential for the first round of testing.
Many parts stores and repair shops in the USA also offer battery testing with an electronic conductance tester. That type of test can estimate available cranking performance without requiring you to remove the battery.
Safety Comes First Around Car Batteries
A 12-volt automotive battery does not sound especially intimidating, but it can deliver a huge amount of current if accidentally shorted.
That means a metal wrench dropped across the terminals is not a cute little mistake.
Lead-acid batteries can also produce hydrogen gas, particularly during charging. Damaged or leaking batteries may expose you to corrosive electrolyte.
Keep sparks and flames away. Remove metal jewelry if you are working close to exposed terminals. Do not lean directly over a battery while making connections.
If the battery case is swollen, cracked, leaking, or unusually hot, stop testing and have it handled professionally.
Step One: Look at the Battery Before Touching the Meter
A visual inspection sounds almost too simple, but it catches problems that a voltage reading can miss.
Look closely at the battery case and connections.
You are checking for corrosion around the terminals, loose cable clamps, damaged cables, a cracked battery housing, swelling, moisture, or signs that the battery has shifted in its tray.
Heavy corrosion can create resistance between the battery terminal and cable clamp. The battery may be perfectly capable of delivering power internally, yet the starter cannot receive enough current because the connection is poor.
That can feel exactly like a dying battery.
Common Signs of a Weak or Failing Battery
Battery problems often announce themselves before the car completely refuses to start.
- The engine cranks noticeably slower than normal
- You hear rapid clicking when trying to start
- Interior or dashboard lights become very dim during cranking
- The car needs repeated jump-starts
- The battery goes flat after sitting for a short period
- Electrical systems act strangely immediately after startup
- The battery case looks swollen or damaged
- The battery is several years old and starting performance has changed
These signs point toward a battery or electrical problem, but they do not prove the battery itself is bad.
A failing alternator, corroded cable, parasitic electrical draw, loose terminal, starter issue, or charging-system fault can create similar symptoms.

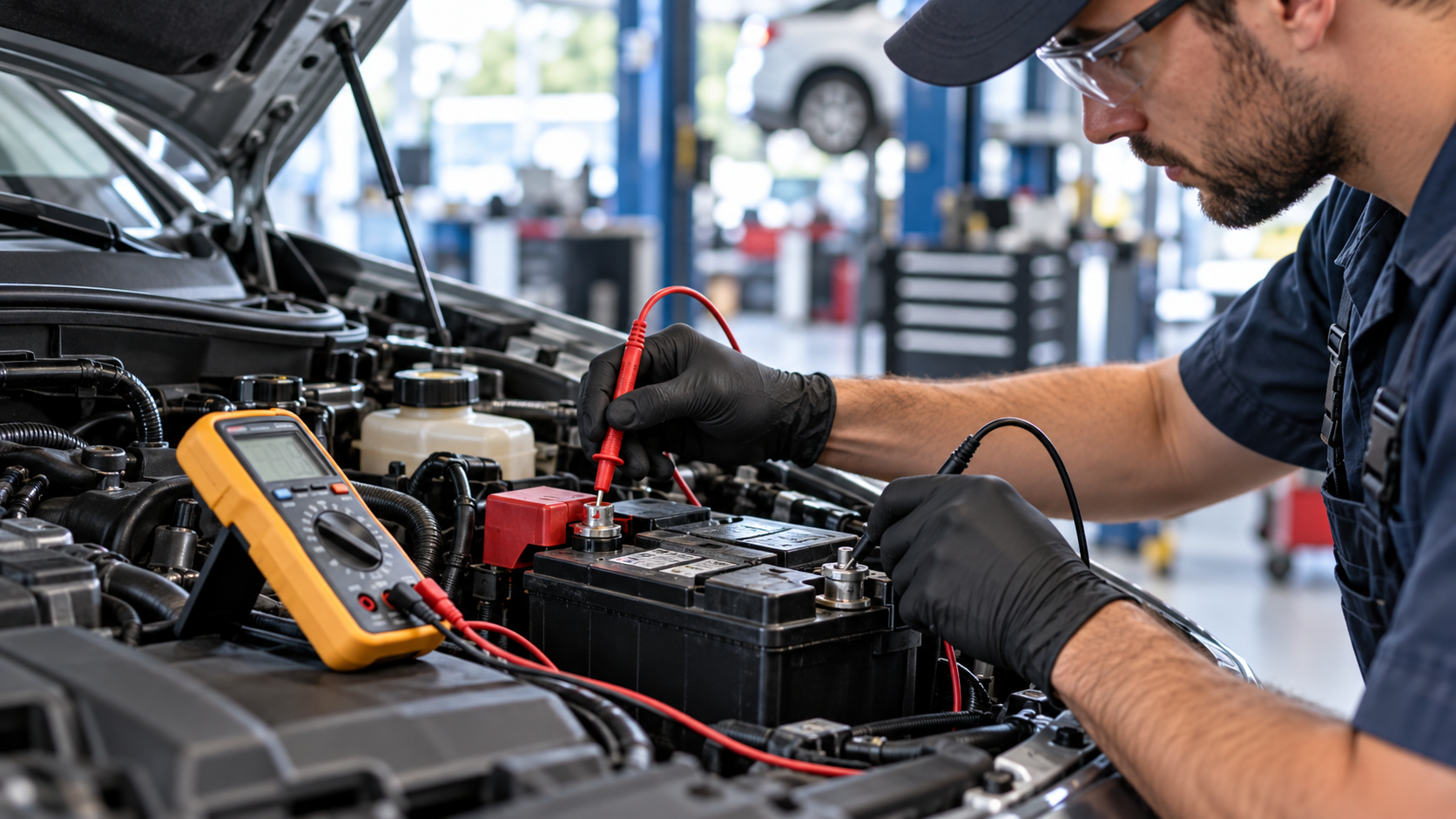

How to Test Car Battery Voltage With a Multimeter
This is the easiest useful test to perform at home.
Turn the engine off. Switch off the headlights, climate control, radio, and other accessories.
Set the multimeter to DC volts. If your meter requires a manual range, select a range higher than 12 volts, such as 20 V DC.
Place the red probe on the battery’s positive terminal and the black probe on the negative terminal.
The display will show battery voltage.
Simple enough. But when you take the reading matters.
Why Resting Voltage Matters
A battery that has just been charged or a vehicle that has just been driven may show a temporary surface charge. That can make the reading look healthier than the battery really is.
For a more meaningful resting-voltage check, let the car sit with the engine off and major electrical loads switched off.
Several hours is better than a few minutes. Testing in the morning before starting the vehicle is often convenient.
For a typical fully charged 12-volt lead-acid battery at moderate temperatures, a resting reading around 12.6 volts is commonly considered healthy.
Do not treat a single decimal place as a courtroom verdict, though. Battery chemistry, temperature, recent charging, vehicle electronics, and meter accuracy all affect readings.
| Approximate Resting Voltage | What It May Suggest | What to Do Next |
|---|---|---|
| About 12.6-12.8 V | Battery is near a full state of charge | Continue with a cranking test if starting problems exist |
| About 12.4 V | Battery is partly discharged | Charge it and retest before condemning it |
| About 12.2 V | Battery is significantly discharged | Recharge and investigate why it became low |
| Near or below 12.0 V | Battery is deeply discharged or may have a problem | Charge safely and perform further testing |
| Around 10.5 V despite charging attempts | A failed cell may be possible | Professional battery testing is a good idea |
These numbers are approximate, not universal pass-or-fail values.
AGM batteries, temperature extremes, and different battery designs can shift what you see.
A Low Reading Does Not Automatically Mean the Battery Is Bad
This is where a lot of unnecessary batteries get purchased.
Suppose your meter shows 12.1 volts.
The battery is clearly low on charge. But why?
Maybe the battery itself can no longer hold energy. Or maybe the car has been parked for three weeks. Maybe someone left a dome light on. Maybe the alternator is not charging properly. Maybe the vehicle has an excessive parasitic draw while parked.
Charge the battery properly before deciding it has failed.
A battery that is simply discharged and a battery that is defective are not the same thing.
Step Two: Test Voltage While Starting the Engine
This is often more revealing than resting voltage.
A starter motor demands a large amount of current. A weak battery that looks fine with no load may suddenly show its true condition when the starter engages.
Keep the multimeter connected to the battery.
Have someone start the engine while you watch the display, or position the meter where you can safely see its minimum reading.
The voltage will drop during cranking.
Under a standardized load test at around 70°F, roughly 9.6 volts has traditionally been used as an important reference point for a conventional 12-volt lead-acid battery. Real vehicle testing is less controlled, however. Temperature, starter load, battery type, engine size, and state of charge all matter.
A brief dip slightly below an ideal textbook number does not automatically mean the battery is dead.
But if voltage drops dramatically and the starter turns very slowly, something is clearly wrong.
Watch the Behavior, Not Just the Number
Say your battery sits at 12.6 volts before starting.
You turn the key, voltage immediately falls to 7.5 volts, and the engine barely moves.
That is far more suspicious than a battery resting at 12.4 volts that cranks the engine strongly.
Load behavior matters.
A proper battery tester can evaluate this more accurately by estimating the battery’s available cold cranking amps, often abbreviated CCA.
What Does CCA Mean?
Cold Cranking Amps describe a battery’s ability to deliver current at low temperature under a standardized test procedure.
The battery label usually lists its rated CCA.
For example, a battery might be rated at 650 CCA. An electronic battery tester can compare measured performance against that rating and report something like good, recharge and retest, or replace.
This is much more useful than deciding battery health from voltage alone.
Step Three: Check Charging Voltage After the Engine Starts
Once the car starts, the charging system takes over much of the electrical work and replenishes the battery.
Leave the multimeter connected and check voltage with the engine running.
On many traditional vehicles, you may see something in roughly the mid-13-volt to mid-14-volt range while charging.
But there is a major modern-car nuance here.
Smart charging systems can intentionally vary alternator output. A newer vehicle may not sit at one fixed 14.2-volt reading all the time. Voltage can change according to battery state, temperature, electrical load, fuel-efficiency strategy, and control-module commands.
So do not condemn an alternator just because the display does not match an old internet rule.
Manufacturer specifications for the specific vehicle always win.
What Charging-System Readings Can Tell You
| Observation | Possible Meaning | Next Step |
|---|---|---|
| Battery is low before starting but voltage rises after startup | Charging system may be working, battery was discharged | Charge battery fully and determine why it became low |
| Voltage remains close to resting battery voltage on an older conventional system | Charging problem may be possible | Check alternator output, wiring, belt, fuses, and vehicle specifications |
| Voltage becomes unusually high | Charging control issue may be possible | Stop guessing and test the charging system properly |
| Voltage changes noticeably on a newer smart-charging vehicle | May be normal system behavior | Compare operation with manufacturer data |
| Battery tests good but repeatedly goes flat | Parasitic draw or charging issue may exist | Perform charging and key-off current testing |
Can Headlights Tell You Anything?
A quick visual check can provide clues, though it is not a proper battery test.
Turn on the headlights with the engine off.
If they are extremely dim and become much dimmer when you try to start the engine, low battery voltage or a poor electrical connection is possible.
If the lights stay bright while the starter does nothing, the problem may lie elsewhere, such as the starter circuit.
Again, this is clue gathering. Not diagnosis by magic.
The Battery Terminals Deserve More Attention Than They Get
Loose or corroded terminals can cause starting problems that look exactly like battery failure.
Check that the cable clamps are secure. They should not rotate freely around the battery posts.
White, green, or bluish buildup around terminals can indicate corrosion.
If corrosion is severe, the connection may need to be cleaned correctly and inspected for damage.
Remember that corrosion can creep into the cable itself. A shiny battery terminal does not guarantee the entire cable is healthy.
Voltage Drop Testing Can Find Bad Connections
This is a more advanced but very useful electrical test.
Instead of measuring battery voltage alone, a technician measures voltage lost across cables and connections while current is flowing.
A cable can look perfectly normal from the outside while creating excessive resistance under starter load.
Voltage-drop testing helps reveal that.
This matters because replacing the battery will not repair a high-resistance ground cable.
What If the Battery Keeps Dying Overnight?
If a charged, healthy battery repeatedly goes dead while the vehicle sits, the battery may not be the real villain.
The car could have an excessive parasitic draw.
Vehicles normally consume a small amount of power while parked. Modules maintain memory, security systems remain active, keyless-entry systems listen for signals, and various computers may wake up periodically.
That is normal.
The problem starts when something stays awake or draws substantially more current than the vehicle is designed to tolerate.
A glovebox lamp, faulty module, aftermarket alarm, dash camera, stuck relay, improperly installed audio equipment, or other circuit can slowly drain the battery.
Do Not Rush Into a Parasitic Draw Test
A key-off current test sounds simple: disconnect a battery cable and place an ammeter in series.
In reality, newer vehicles make the procedure easier to mess up.
Opening doors, waking control modules, turning accessories on, or connecting the meter incorrectly can blow the meter’s internal fuse or produce misleading readings.
Some vehicles need considerable time before all modules enter sleep mode.
If you are not comfortable measuring current safely, let a technician perform this test.
What About Battery Testers That Plug Into the Cigarette Lighter?
They can be useful for watching system voltage, but they are not the same as testing directly at the battery.
Voltage loss in wiring, sockets, or control circuits can create differences between what the accessory port sees and what exists at the battery terminals.
For basic battery diagnosis, measure directly at the battery or at manufacturer-designated remote battery terminals.
Where Is the Battery?
Not always under the hood anymore.
Some vehicles place the 12-volt battery in the trunk, under the rear seat, under a cover, or in another less obvious location.
Manufacturers often provide remote positive and negative points under the hood for jump-starting and testing.
If you cannot find the battery, check the owner’s manual before removing random panels.
AGM Batteries Need a Little Context
Absorbent Glass Mat, or AGM, batteries are common in vehicles with stop-start systems and higher electrical demands.
They are still lead-acid batteries, but their construction and charging needs differ from a conventional flooded battery.
If an AGM battery needs charging, use a charger that supports the battery type.
And when replacement time comes, install the type specified for the vehicle. Replacing an AGM battery with a cheaper conventional battery may create charging or durability problems in a vehicle designed around AGM technology.
Some Cars Need Battery Registration After Replacement
This surprises people.
Certain modern vehicles monitor battery age, condition, and charging history. After a new battery is installed, the vehicle may require battery registration, adaptation, or coding with a compatible scan tool.
The exact process varies by manufacturer and model.
If your vehicle uses battery-energy management, simply swapping the physical battery may not complete the job.
How Temperature Changes Battery Performance
Cold weather is rough on starting batteries.
Low temperatures reduce the battery’s available chemical performance while the engine itself often requires more effort to crank.
That is why a marginal battery can seem fine through summer and suddenly fail on the first truly cold morning.
Hot climates are not gentle either.
High under-hood temperatures can accelerate battery aging and internal deterioration. So drivers in hot states can experience shortened battery life even if cold-cranking performance rarely seems important.
The weather exposes battery weakness in different ways.
How Old Is Too Old for a Car Battery?
There is no single birthday when every automotive battery fails.
Battery life depends on climate, vehicle use, charging patterns, battery construction, electrical demands, and simple manufacturing variation.
A battery that has spent years making short trips in intense heat has lived a different life from one in a moderate climate that regularly receives long highway drives.
Still, age becomes useful context once starting performance begins to change.
If an older battery is cranking slowly, testing it sooner rather than later makes sense.
Find the Battery Date Code
Many batteries include a manufacturing or installation date label.
The format is not universal. Some labels are obvious. Others use letter-and-number codes that require manufacturer information to decode.
If a shop installed the battery, you may also find a service sticker with the replacement month and year.
Knowing battery age helps interpret borderline test results.
Should You Charge the Battery Before Testing?
If it is significantly discharged, yes.
Testing a deeply discharged battery and immediately declaring it bad can produce the wrong answer.
Charge it with a suitable battery charger according to the charger and battery manufacturer’s instructions.
Then allow the battery to stabilize and retest.
If it accepts a full charge, holds that charge, and performs well under load, it may still be usable.
If voltage falls quickly or the battery fails a proper load or conductance test after charging, replacement becomes much more likely.
What If the Car Only Makes One Click?
A single solid click can come from the starter solenoid while the starter itself fails to turn.
A weak battery can cause this. So can a poor cable connection, bad starter, faulty ground, or mechanical problem.
Measure battery voltage during the start attempt.
If battery voltage remains relatively strong but the starter does not crank, the battery may not be your main problem.
If voltage collapses dramatically, focus more attention on the battery and high-current connections.
What Does Rapid Clicking Usually Mean?
Rapid repeated clicking often appears when voltage falls enough that the starter solenoid cannot stay engaged.
The solenoid engages, voltage drops, it disengages, voltage recovers, and the cycle repeats quickly.
A discharged battery is a common cause.
But loose or badly corroded battery connections can create the same basic effect.
Can Jump-Starting Tell You If the Battery Is Bad?
It tells you something, but not everything.
If the car starts normally with a proper jump, the original battery was probably unable to provide enough starting power at that moment.
That does not automatically prove it needs replacement.
It may simply have been discharged.
After the vehicle starts, investigate why the battery was low and test both the battery and charging system.
Do Not Depend on Driving Alone to Recover a Very Low Battery
People often say, “Just drive around for twenty minutes.”
That may help a mildly discharged battery, but an alternator is not necessarily the ideal tool for recovering a deeply discharged battery.
A proper battery charger can restore charge in a more controlled way.
It also gives you a cleaner starting point for further testing.
When a Battery Test Says “Recharge and Retest”
This result annoys people because it feels noncommittal.
But it makes sense.
An electronic tester may not be able to judge battery health accurately when the state of charge is too low.
Charge the battery and repeat the test.
If the result changes to good, you can investigate why it became discharged. If the battery still fails after being properly charged, replacement is easier to justify.
Three Tests That Tell a Better Story Together
If you want a useful home assessment, combine these checks rather than relying on one number.
- Check resting voltage after the battery has had time to stabilize
- Watch voltage and cranking behavior during engine startup
- Check charging-system behavior after the engine begins running
- Inspect terminals, battery condition, cables, and battery age
- Get a proper battery conductance or load test if results remain unclear
Together, these observations can separate a discharged battery from a weak battery, charging problem, or connection issue far better than resting voltage alone.
When You Should Stop Testing and Replace the Battery
Some cases are fairly straightforward.
A cracked or leaking battery should not stay in service.
A severely swollen battery needs attention too.
If a fully charged battery repeatedly fails a proper load or conductance test, replacement is usually the practical answer.
If the battery cannot retain charge even after other electrical problems are ruled out, that is another strong sign.
But do not replace the battery and assume the story ends there if the old one repeatedly became discharged for no obvious reason.
The new battery may suffer exactly the same fate if the underlying charging or parasitic-draw problem remains.
What to Check After Installing a New Battery
Make sure the terminals are clean and secure.
Verify that the replacement battery matches the required size, terminal layout, battery technology, and performance specification for the vehicle.
Confirm whether battery registration or programming is required.
Then test charging-system operation.
A new battery connected to a faulty charging system is not a repair. It is just a fresh battery waiting for the same problem.
How to Test Car Battery FAQ
What voltage should a healthy car battery show?
A fully charged conventional 12-volt lead-acid battery often measures around 12.6 volts or a little higher at rest. Temperature, battery type, and recent charging can change the exact reading.
Is 12.4 volts a bad battery reading?
Not necessarily. Around 12.4 volts generally suggests that the battery is not fully charged. Charge it properly and test again before deciding the battery has failed.
Can a battery show 12 volts and still be bad?
Yes. Resting voltage alone cannot prove the battery can supply high current. A weak battery may show reasonable voltage with no load and then drop sharply during cranking.
How low should battery voltage drop when starting?
Traditional load-testing guidance often references approximately 9.6 volts at around 70°F for a fully charged conventional battery under standardized conditions. Real vehicles vary, so temperature, battery type, starter load, and manufacturer specifications matter.
How can I tell if the battery or alternator is bad?
Test battery condition first, then observe charging-system voltage and behavior with the engine running. A weak battery, faulty alternator, poor cable connection, and parasitic draw can produce overlapping symptoms, so multiple tests are better than one voltage reading.
Should I replace a battery just because it needed a jump?
No. The battery may simply have been discharged by lights, long-term parking, short trips, or another electrical problem. Recharge it and perform a battery test before replacing it.
Can I test a car battery without removing it?
Usually, yes. Resting voltage, cranking voltage, charging behavior, and many electronic battery tests can be performed with the battery installed. Follow the vehicle manufacturer’s guidance if the battery is remotely located or part of a battery-management system.
Conclusion
Learning how to test car battery condition is mostly about resisting the urge to make a decision from one number.
A 12.6-volt reading is useful. It is not a guarantee.
A 12.1-volt reading tells you the battery is low. It does not automatically tell you why.
The useful picture appears when you combine resting voltage with what happens during starting, how the charging system behaves afterward, and what the battery physically looks like.
Start with the easy stuff.
Inspect the case. Look at the terminals. Check whether the connections are actually tight. Measure resting voltage. Then watch the meter while the engine cranks.
If the engine starts, see what the charging system does next.
And if the numbers still leave you scratching your head, get the battery tested under load or with a proper conductance tester.
That last step is especially useful because batteries can fool you. They may appear fine with almost no electrical demand and fall apart the second the starter asks for hundreds of amps.
Also keep the bigger picture in mind.
A battery that repeatedly goes flat may be the victim, not the cause. An alternator problem, poor ground, damaged cable, or parasitic electrical draw can drain a perfectly good battery.
Replacing it may make the car start beautifully for a few days. Then you are back in the driveway with the same click.
Not fun.
And modern cars add another wrinkle. Smart charging systems do not always follow the old rule that every running engine should show one neat, fixed voltage. Battery-monitoring systems can change alternator output according to conditions, and some vehicles need a new battery registered electronically after installation.
That is why manufacturer information matters when the basic tests point somewhere unusual.
For most drivers, though, a digital multimeter plus a few careful observations will answer the first and most important question: is the battery charged, and can it still handle the job?
If the answer is yes, look elsewhere.
If the answer is no, charge it and test again before spending money.
And if a fully charged battery repeatedly collapses under load, refuses to hold charge, or fails a proper battery test, replacement starts making a lot more sense.
That is a much better way to diagnose a no-start than buying a new battery because the car looked annoyed this morning.
Leave a Reply
